ناتشر سويتش (زجاج أسود/أبيض/اتجاه واحد)

Product Description

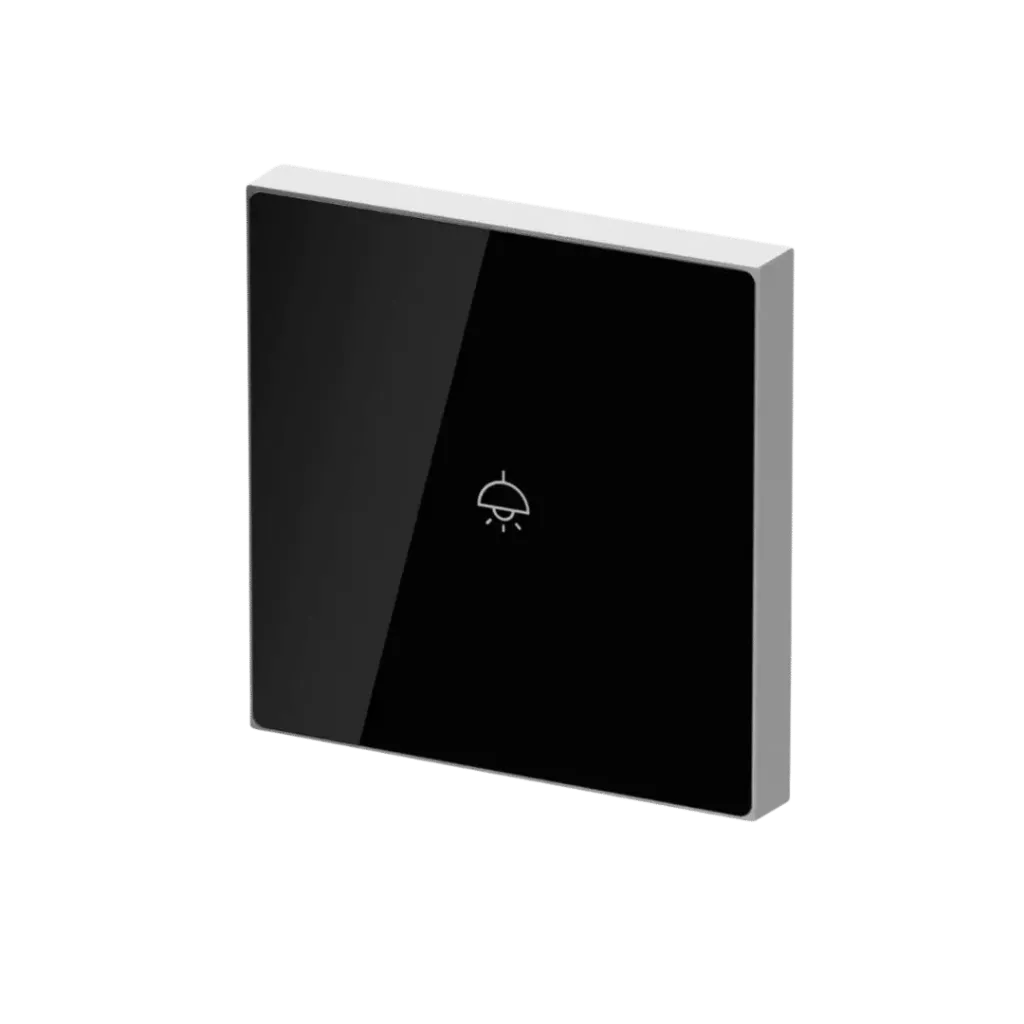

The LifeSmart Nature Switch Black Glass White 1 Way LS220-WH1 is a premium smart wall switch engineered to blend minimalist high-end aesthetics with advanced home automation technology. Featuring a smooth, tempered black glass surface plate with a clean frameless bezel layout and a contrasting white frame chassis, it serves as a sophisticated modern interface to replace standard electrical switches.

This 1-way model features a single expansive glass touch pane zone that controls an independent electrical lighting circuit. It incorporates highly sensitive physical touch mechanism logic that delivers subtle, tactile click interactions when pressed. Built with heavy-duty 16A magnetic latching relays and an industrial-grade flame-retardant structural base, the assembly completely avoids internal welding points or contact sticking, ensuring excellent operational durability across decades of usage.

When linked to a LifeSmart Smart Station hub via the proprietary long-range CoSS wireless protocol, this glass panel unlocks full smart ecosystem integration. This system configuration allows you to:

• Run remote status monitoring and real-time tracking through mobile apps.

• Configure execution schedules and automated timers.

• Map multi-way dual control logic configurations (e.g., 2-way switching).

• Trigger customized smart scene linkages across other smart devices.

It also offers direct ecosystem cross-compatibility for instant voice command execution through Apple HomeKit, Amazon Alexa, and Google Assistant platforms.

Technical Specifications

General

• Model Number: LS220-WH1

• Control Channels: 1 Way / 1 Gang

• Faceplate Material: Premium tempered black glass panel

• Control Unit: 16A heavy-duty magnetic latching relay

• Power Supply: AC 100 to 240V, 50/60Hz

• Static Power Consumption: Less than 0.6W

• Maximum Overload (Resistive Load): 500W

• Maximum Overload (Inductive or Capacitive Load): 200W

• Relay Durability: Tested for up to 38,880 operations

• Wiring Interface: Live + Neutral configuration

Radio and Connectivity

• Radio Protocol: CoSS proprietary protocol

• Signal Range (Open Field): Up to 200 meters transmission distance

• Smart Control Integrations: Apple HomeKit, Google Assistant, Amazon Alexa

Construction and Environment

• Color Profile: Black glass panel with white frame chassis

• Casing Materials: Tempered glass front panel with a V0-grade fire-retardant PC bottom cover

• Design Style: Frameless, large-panel flat glass tactile button layout

• Installation Type: In-wall concealed positioning using a standard 86-type back box

• Dimensions (Outside Wall Frame): 86 x 86 x 11 mm

• Dimensions (Total Product Depth): 86 x 86 x 36 mm

• Operating Temperature: -5°C to 45°C

• Operating Humidity: 5% to 90% RH non-condensing
