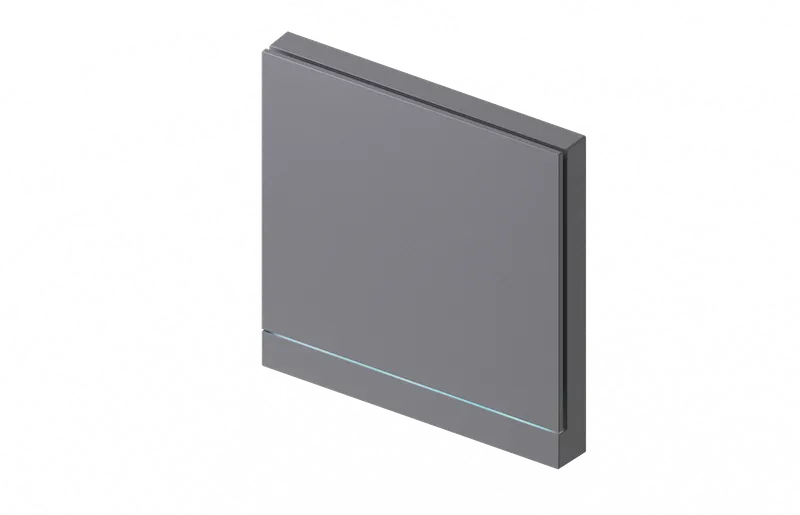

BLEND Switch PRO (SL/Grey/1 way) - Non Neutral
BLEND Switch PRO (SL/Grey/1-way) — Non-Neutral
Core Advantages
No Neutral Required (Single Live): Perfect for seamless retrofitting. Installs directly into your existing traditional 86-type back box, completely eliminating the need to pull new cables through walls or break into plaster.
Frameless Modern Aesthetic: Features a striking, borderless large-panel layout with frosted tactile keys. Its clean lines and structural symmetry make it a perfect fit for high-end contemporary interiors.
DIY Magic LED Strip: A fully customizable, ultra-thin linear accent light. Use the app to select from 16 million colors and adjust brightness levels to indicate device status, display ambient colors, or serve as a locator in the dark.
Ultra-Stable CoSS Protocol: Powered by LifeSmart’s proprietary CoSS wireless protocol, providing a highly secure, instantaneous connection range of up to 200 meters in an open field with virtually zero standby latency.
Key Specifications
| Attribute | Specification |
| Model / Variation | BLEND Switch PRO (1-Gang / 1-Way) — SL Grey |
| Wiring Requirements | Single Live Wire Only (No Neutral wire needed) |
| Dimensions | $86 \times 86 \times 36\text{ mm}$ (Standard 86 back box installation) |
| Enclosure Material | Flame-retardant PC (Bottom Cover) + Premium ABS+PC (Top Cover) |
| Wireless Protocol | CoSS (Requires LifeSmart Smart Station gateway) |
| Maximum Load | Resistive: 500W |
| Power Consumption | Ultra-efficient standby mode ($<1\text{ mW}$) |
| Hardware Core | Industrial 16A magnetic latching relay (tested for over 38,000 cycles) |
Smart Ecosystem Compatibility: Fully integrates into major automated workflows. Pair it with the LifeSmart Smart Station to unlock native voice and scene automation across Apple HomeKit, Google Assistant, and Amazon Alexa.
-
