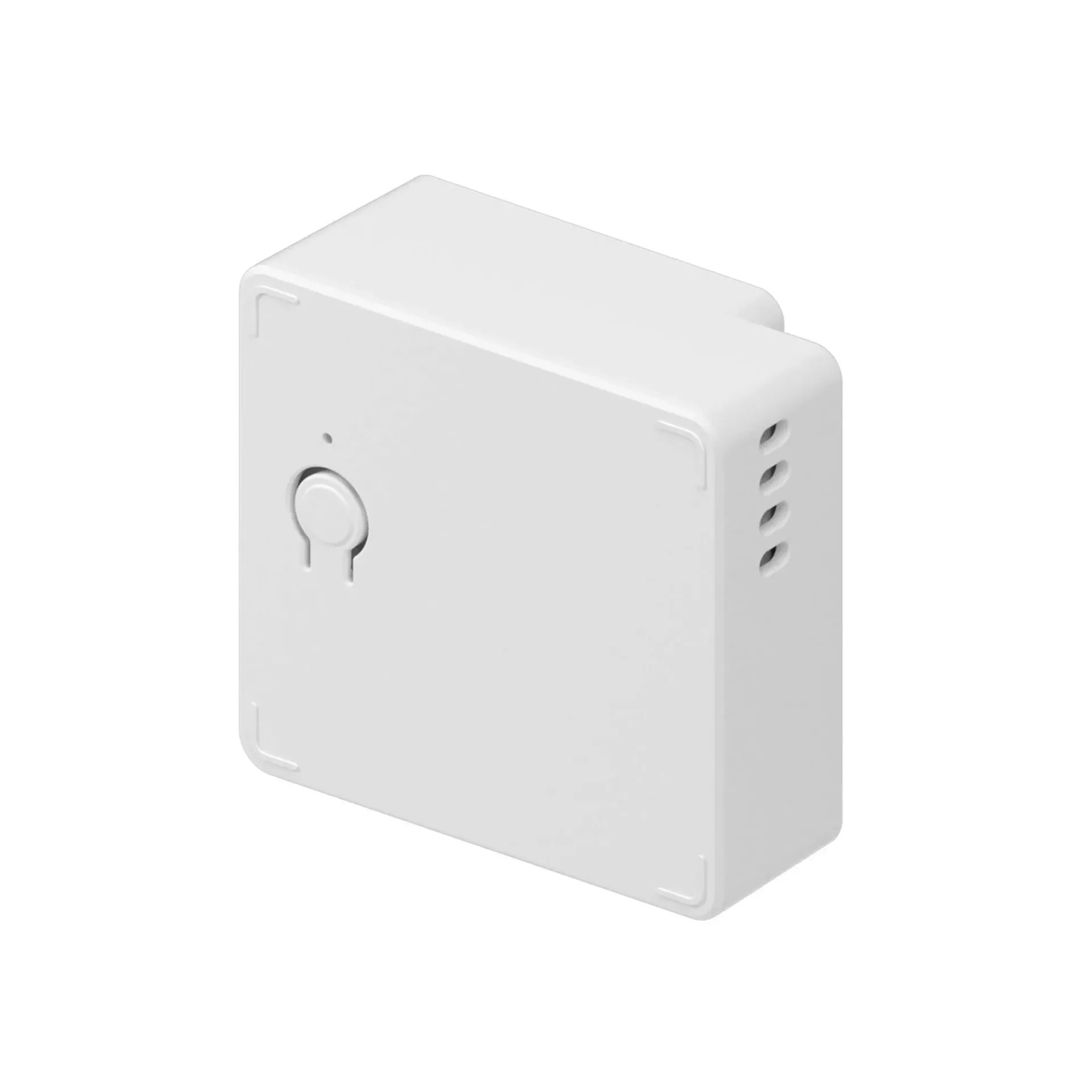

CUBE Switch Module PRO (3 way)

Product Description

The LifeSmart CUBE Switch Module PRO 3-Way LS193 is an upgraded, high-performance smart relay designed to transform traditional triple-gang or multi-circuit light switches into intelligent components of your automated home. Despite upgrading its internal hardware to a heavy-duty 16A magnetic latching relay, it retains an incredibly small, space-saving form factor optimized for installation inside standard 86-type in-wall electrical boxes.

The PRO module handles up to three separate electrical circuits or channels simultaneously, allowing comprehensive control over complex lighting layouts, bathroom multi-function units, or ceiling fans. Wired directly behind your existing light switch using a live and neutral configuration, it preserves traditional manual operation while instantly enabling advanced features through the LifeSmart ecosystem. This unlocks remote mobile tracking, scheduled timing tasks, voice assistant execution, and contextual smart scene integration.

System Requirement: Operation within a broader smart platform or integration with Apple HomeKit requires connection to a LifeSmart Smart Station hub.

Technical Specifications

General

• Model Number: LS193 3-way

• Control Unit: 16A Magnetic latching relay

• Output Channels: 3 ways / separate circuits

• Power Supply: AC 100 to 240V, 50/60Hz

• Static Power Consumption: Less than 0.3W

• Maximum Overload (Resistive Load): 500W per channel / way

• Maximum Overload (Inductive or Capacitive Load): 200W per channel / way

• Wiring Configuration: Live + Neutral

• Indicator: Built-in LED indicator light

• Control Button: Physical pairing button

Radio and Connectivity

• Radio Protocol: CoSS wireless protocol

• Wireless Frequency: 433MHz

• Signal Range (Open Field): Up to 100 meters

• Two-Way Feedback: Real-time status sync to LifeSmart App

Construction and Environment

• Color Profile: Ivory white

• Casing Material: Flame-resistant PC polycarbonate

• Dimensions: 47 x 44 x 22 mm

• Weight: 50 grams

• Operating Temperature: -5°C to 45°C

• Operating Humidity: 5% to 90% RH non-condensing
